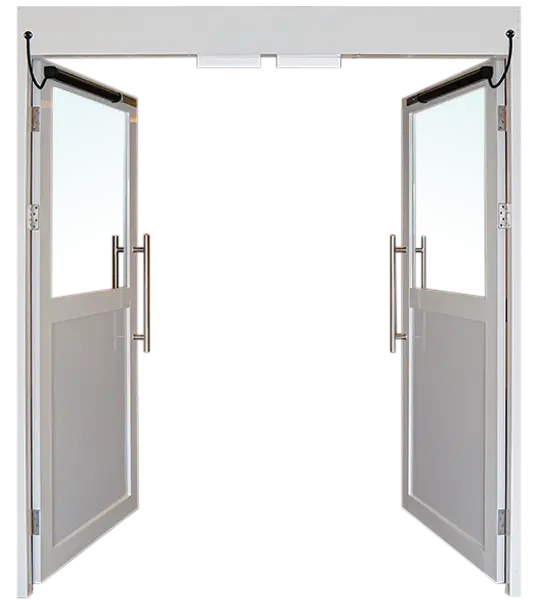

Automatic Swing Door

Automatic Swing Door

Our Door Studio automatic swing doors feature world-class design and a modern, luxurious style. They are suitable for use as a main entrance, emergency door, or fire exit. They are strong, durable, and can be used continuously for up to one million cycles before requiring maintenance. They can handle a weight of up to 600 kg, and the door leaves can open as wide as 1,600 mm. The advanced internal mechanism features exclusive patented technology.
The Automatic Swing Door offers a superior experience with a fast, easy-to-use opening and closing system. The motor is twice as quiet and has been tested by TUV - EN16005 and holds the German design standard certification DIN 18263-4/EN 1158.

EN 16005
F

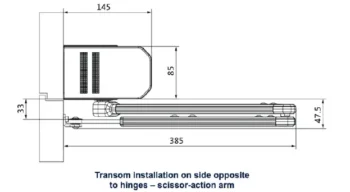

Automatic Swing Door structure
Auto Swing Door Structure

Designed for Every Use

The automatic swing door is a symbol of perfection, blending technology and design to meet your needs. The automated system operates quietly with a newly upgraded sensor system that is accurate and safe. It locks securely and includes an anti-pinch feature on all models. Swing doors are available in both single and double leaf options.

International Standard Automatic Doors

All functions can be implemented using a single swing door operator:

  • 1- and 2-leaf swing doors
  • Fire doors
  • Push or pull operation
  • Maximum door weight: up to 600 kg
  • Maximum door leaf width: up to 1,600 mm
  • Patented energy storage system consisting of two individually adjustable spring sets
  • Closing force instead of locking speed: Patented delayed closing system using the dynamic effect of the drive motor.
  • Adjustable servo-assist system: 00 to 24 V/2.5 A for external components.
  • High dynamic range for fast opening.
  • Mechanical closing sequence control for 2-leaf fire doors or doors on escape routes, hidden under the drive cover.
  • Quiet operation makes it ideal for use in noise-sensitive areas like
    offices or hospitals.
  • Convenient adjustment options directly on the drive via a dial/push button with a built-in display under the drive cover.
  • Elegant and stable design of the scissor and slide arms.
  • Tested Quality
    - TUV type-tested and certified according to EN 16005.
    - Tested by VdS and the German Material Testing Office according to DIN 18263-4/EN 1158.
    - Design approval from the German Institute of Building Engineering (application submitted).

Automatic Swing Door

Specification

Height x Depth x Length

85 x 145 x 680 mm [1]

Weight

11 Kg.

Leaf Width (1-leaf)

700 - 1600 mm

Closing Force Sizes for Fire Protection Doors

EN 3 - EN7

Distance Between Hinges (2-leaf)

1450 - 3200 mm

Mass Inertia, Max.

190 Kg/ m2 [2]

Torque Max.

260 Nm

Max. Door Leaf Weight

600 Kg

Current Consumption for External Devices, Max.

24 V DC/ 2.5 A

Opening Angle, Max.

135

Lintel Depths, Scissor-Action Arm

0 - 300 mm

Lintel Depth, Slide Rail

+10/ -10 mm

Axle Extensions

30, 60 and 90 mm

Power Consumption Max.

80 W

Standby Operation

7W

Ambient Temperature

-15 %C to +50 "C

Protection Type

IP 20

Test Cycles Accordinr to DIN 18263-4

500,000

Test Cycles According to EN 16005

1,000,000
REQUEST A QOUTE
Automatic swing door
Product Installation

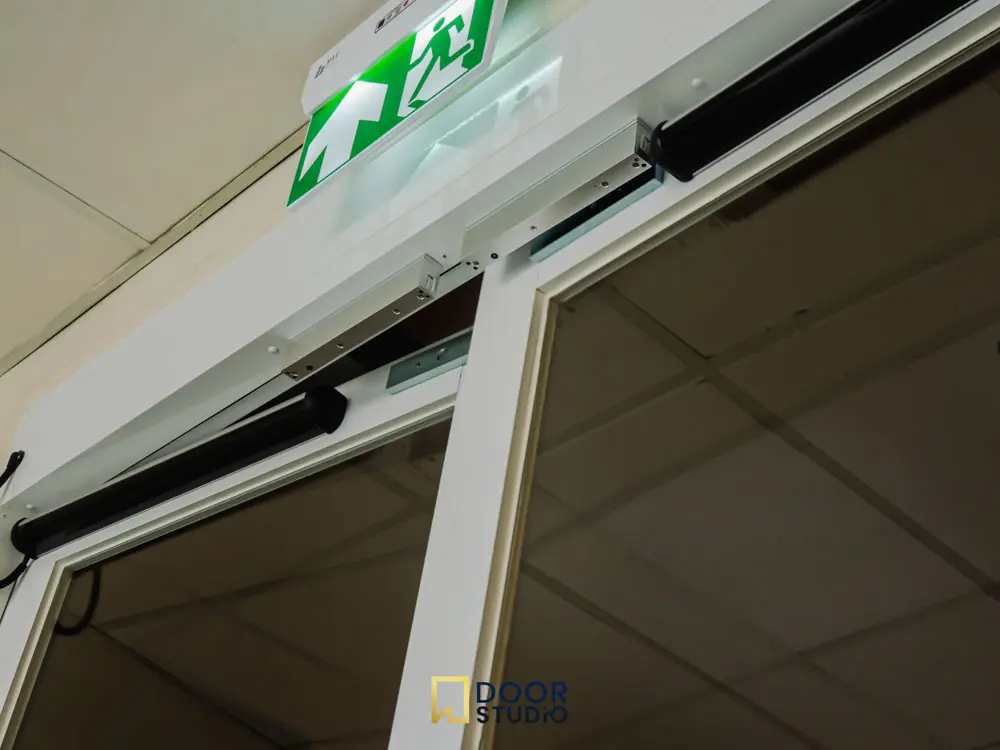

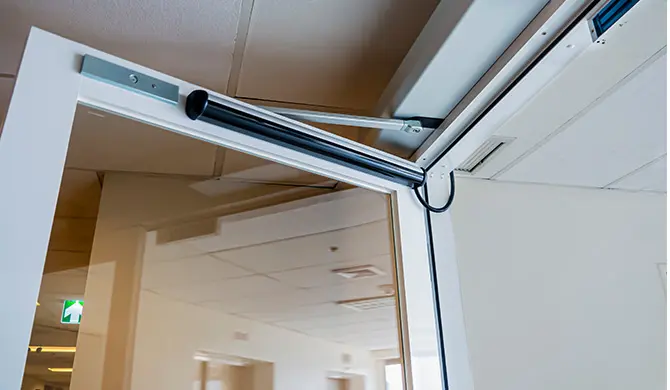

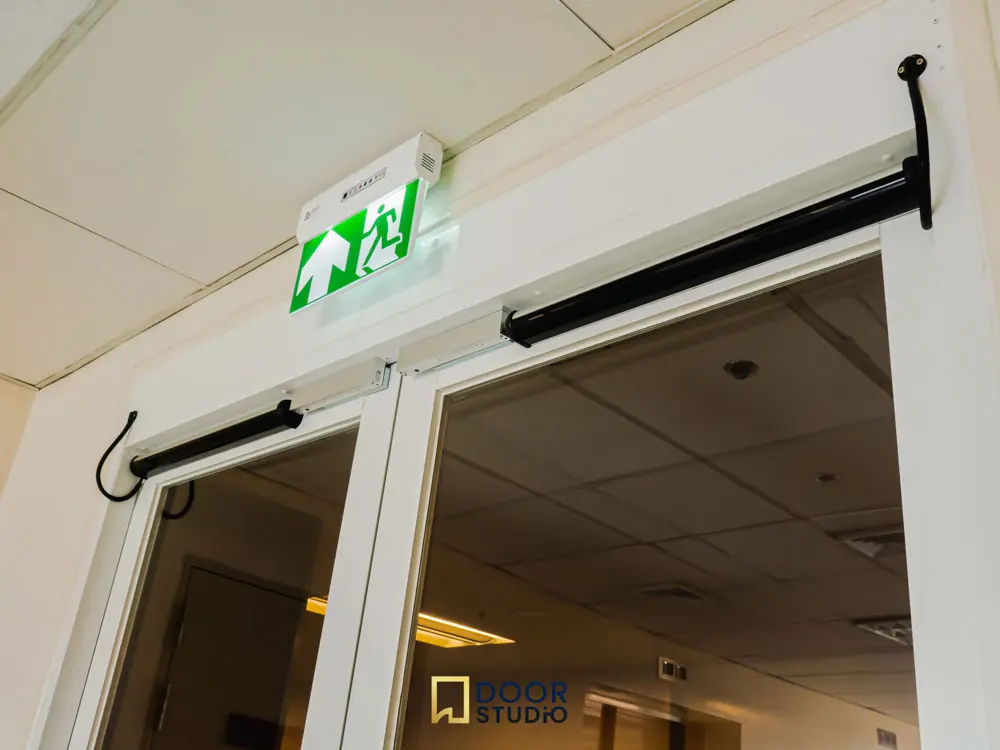

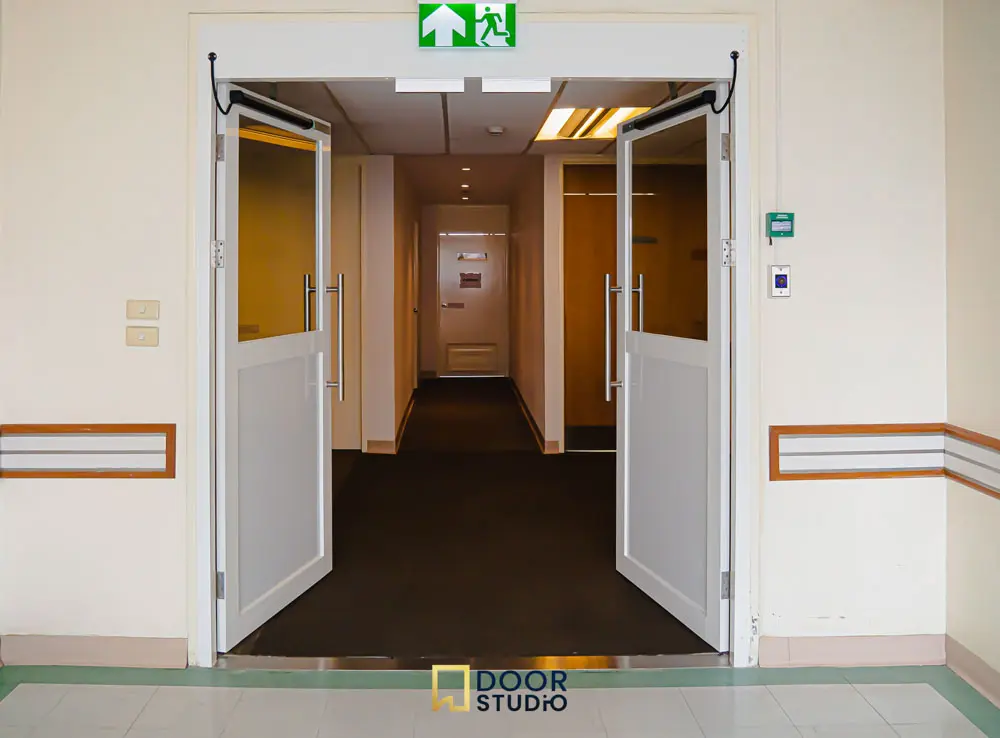

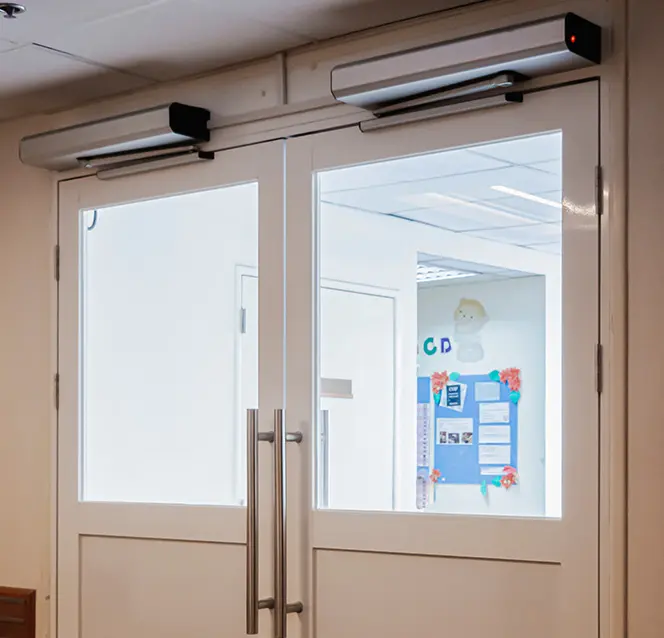

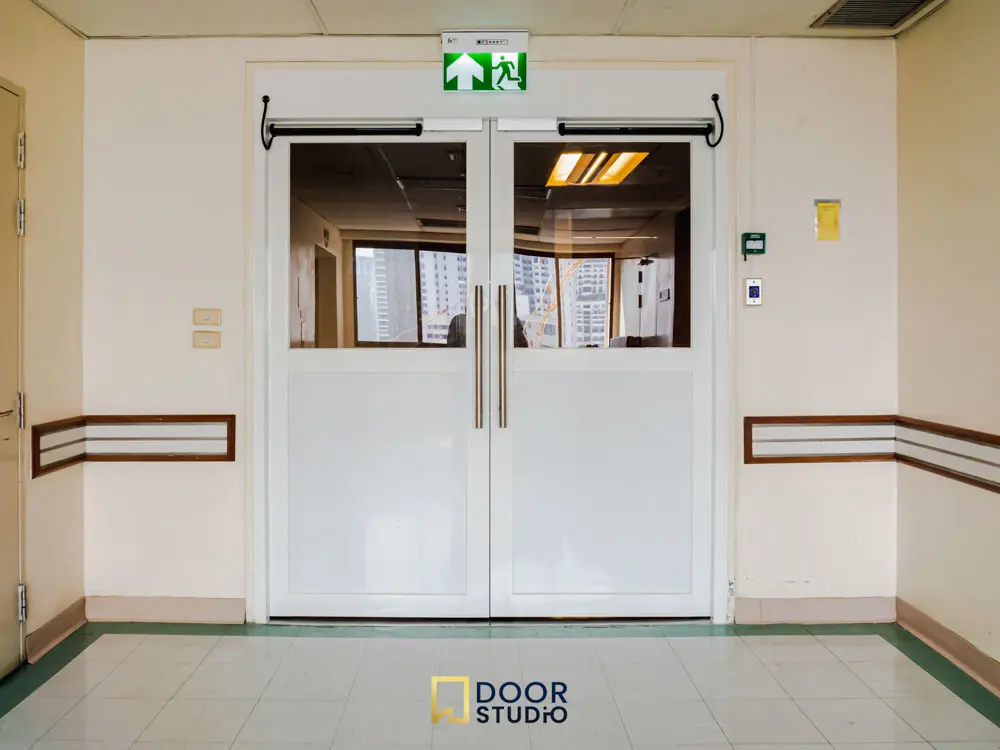

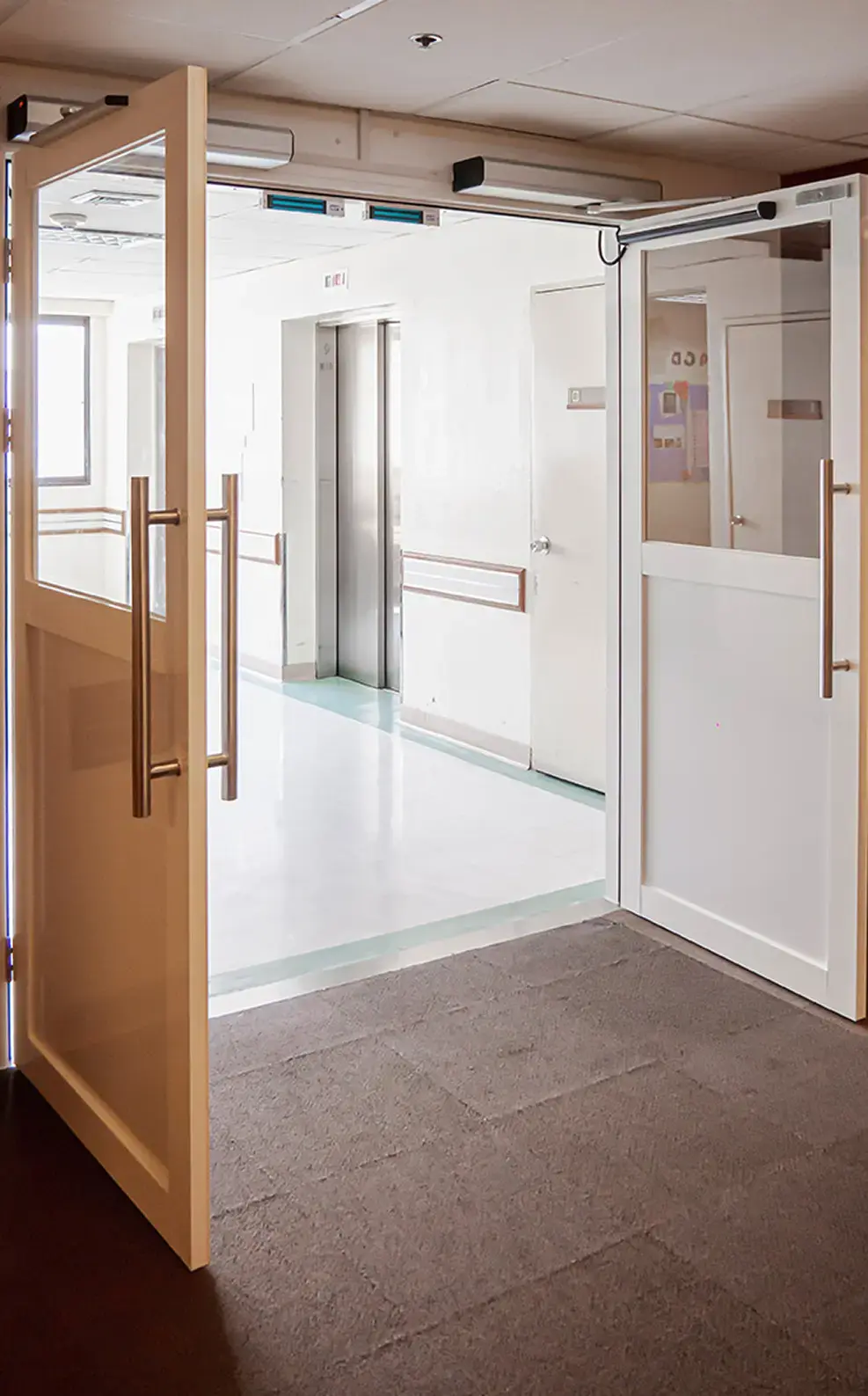

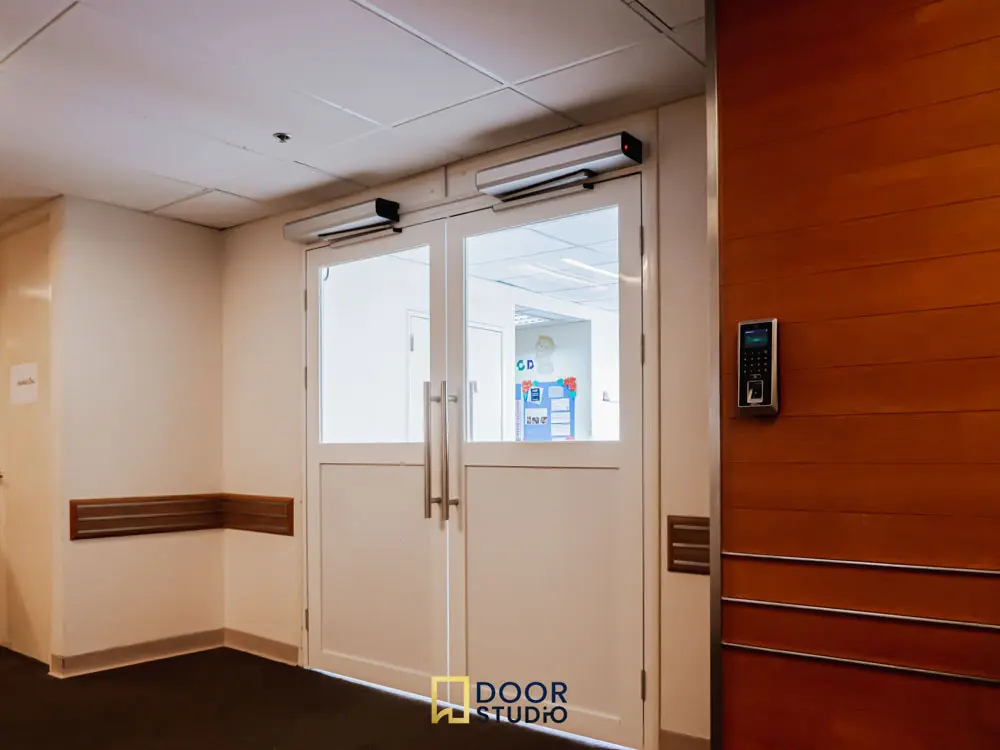

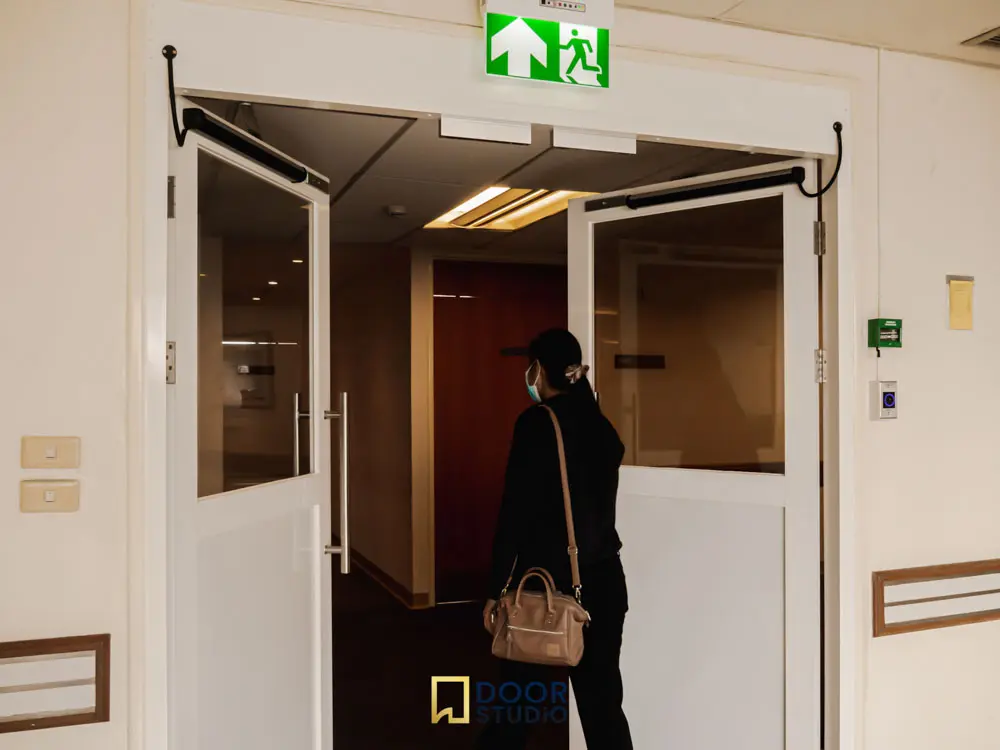

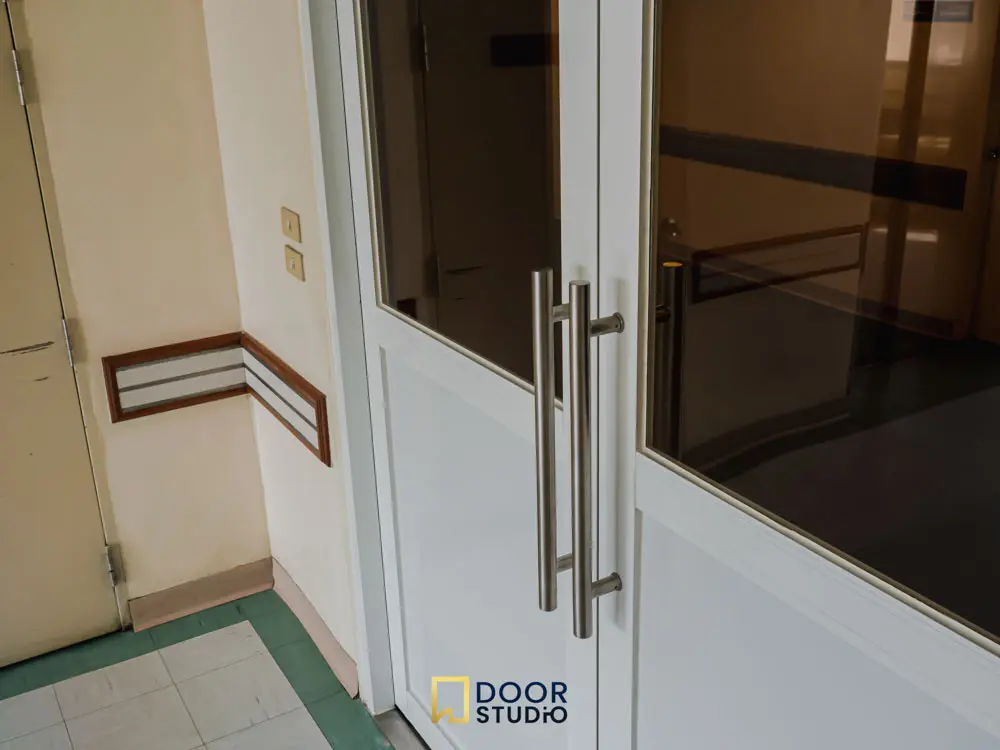

Installation Examples

Automatic Swing Sliding Door

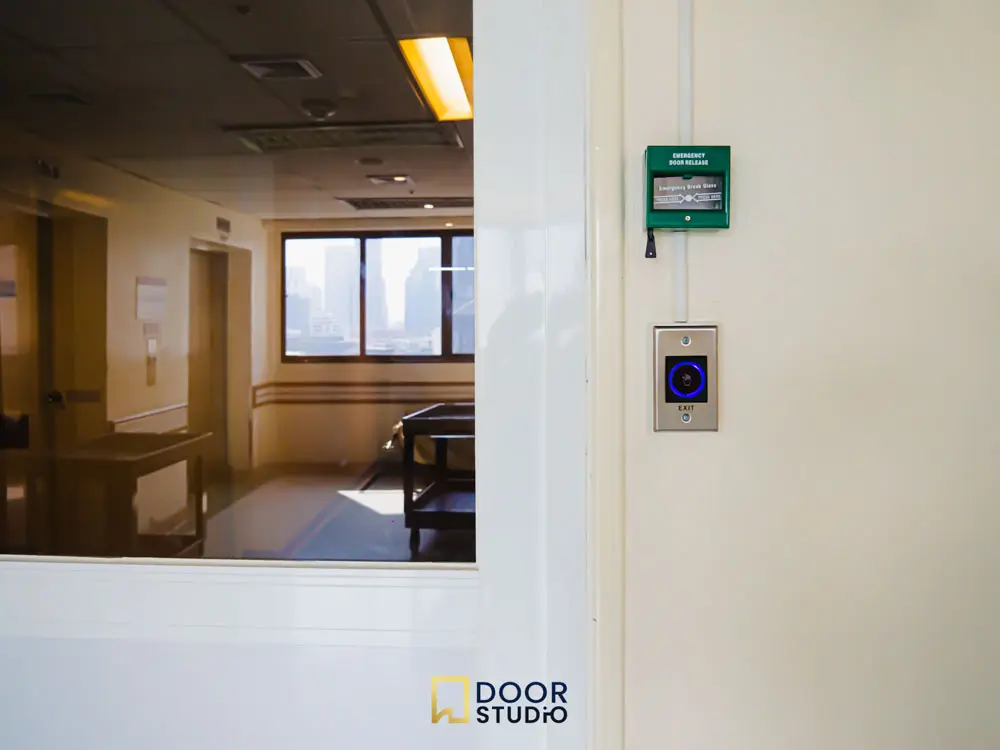

เซ็นเซอร์ประตูอัตโนมัติ, Automatic Swing Door Sensor
เซ็นเซอร์ประตูอัตโนมัติ, Automatic Swing Door

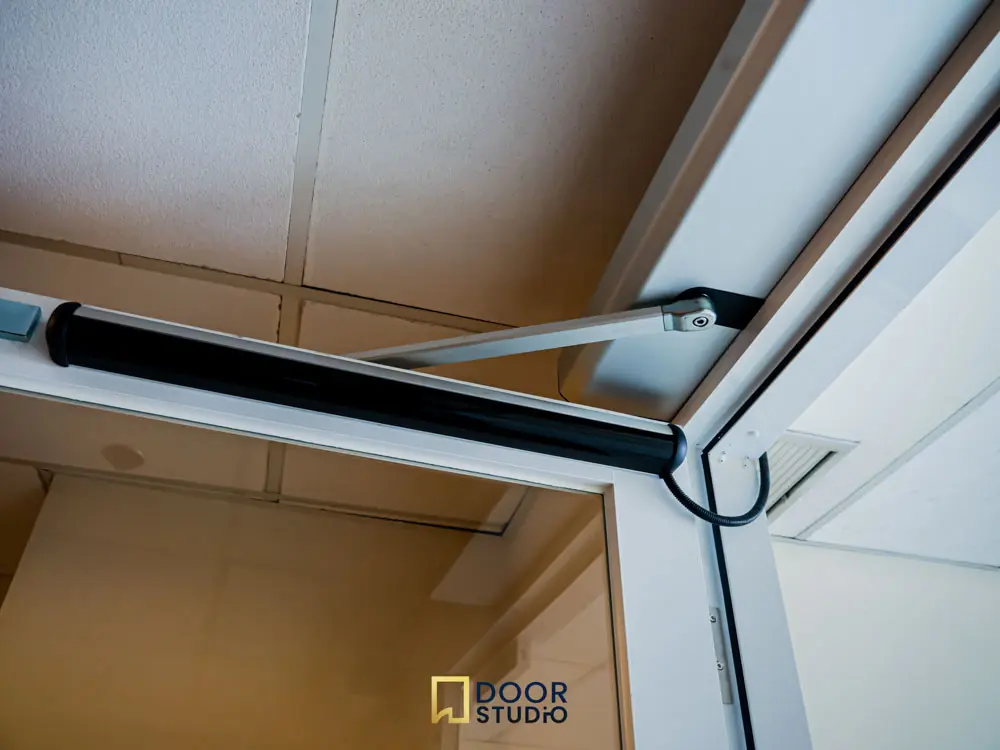

เซ็นเซอร์ประตูอัตโนมัติ , Automatic Swing Door Closer
เซ็นเซอร์ประตูอัตโนมัติ, Automatic Swing Door Opening

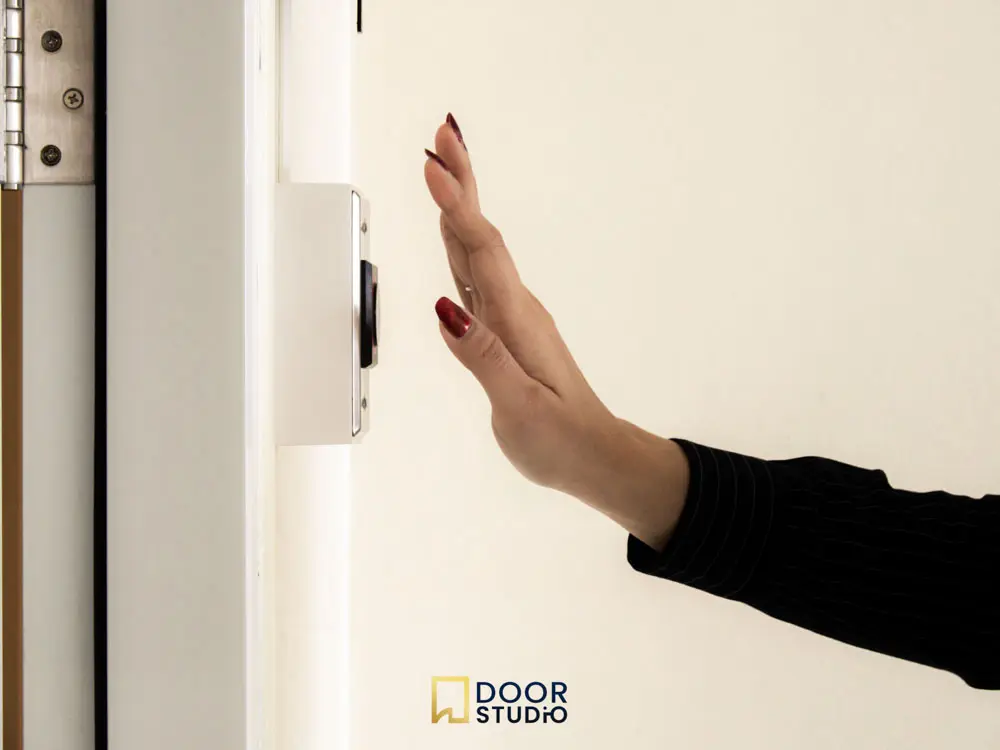

เซ็นเซอร์ประตูอัตโนมัติแบบไร้สัมผัส
ประตูออโต้สวิง, Automatic Swing Door
เซ็นเซอร์ประตูอัตโนมัติแบบไร้สัมผัส, เซ็นเซอร์ประตูอัตโนมัติ, Automatic Swing Door Opening
เซ็นเซอร์ประตูอัตโนมัติแบบไร้สัมผัส
เซ็นเซอร์ประตูอัตโนมัติแบบไร้สัมผัส, เซ็นเซอร์ประตูอัตโนมัติ, Automatic Swing Door Opening
ประตูสวิงอัตโนมัติ, Automatic Swing Door
ประตูสวิงอัตโนมัติม Auto Swing Doo

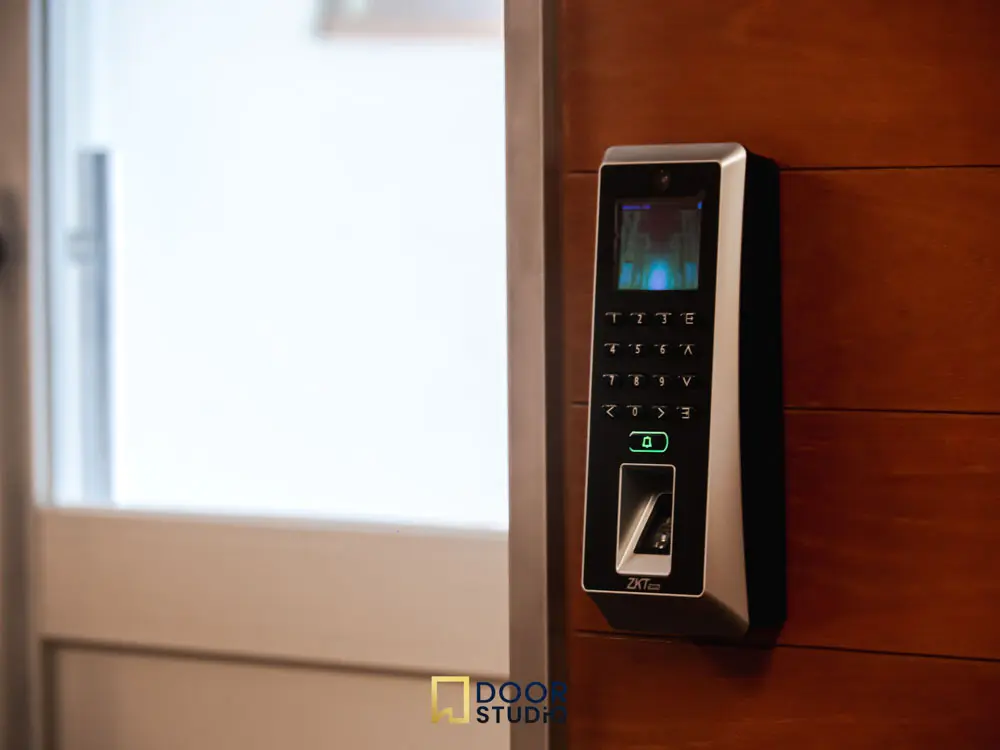

Auto Door Access control
